Vtork Pneumatic & Electric Valve Actuators

• Rack & Pinion Pneumatic Actuators — Double-Acting & Spring-Return
• Scotch Yoke Actuators — High-Torque Pipeline & Industrial Service
• Electric Actuators — Quarter-Turn & Multi-Turn
• Declutchable Manual Gear Overrides

Vtork is a leading global manufacturer of pneumatic and electric valve actuators, serving the oil and gas, petrochemical, chemical, power generation, water and wastewater, and general process industries. With manufacturing facilities and engineering resources dedicated to quarter-turn and linear valve automation, Vtork produces a comprehensive range of rack-and-pinion pneumatic actuators, scotch yoke actuators, electric actuators, and accessories designed for reliable performance in the most demanding field conditions.

Vtork actuators are built to international standards including ISO 5211, NAMUR, and ATEX, and are available in a wide range of sizes and torque outputs to automate everything from small 2-inch instrument valves to large-bore pipeline isolation valves. Vtork's commitment to quality, competitive pricing, and global support has made them a preferred actuator brand for engineering firms, EPC contractors, and plant operators worldwide.

ATSCO Sales & Service is Vtork's factory-authorized manufacturer's representative for the Rocky Mountain region. Our complete in-house machine shop assembles and tests Vtork valve automation packages — actuator, limit switches, solenoid valve, and positioner — mounted and ready for installation. Serving Utah, Idaho, Nevada, and Wyoming for over 50 years. Call us at 801-565-7277 for sizing and application assistance.

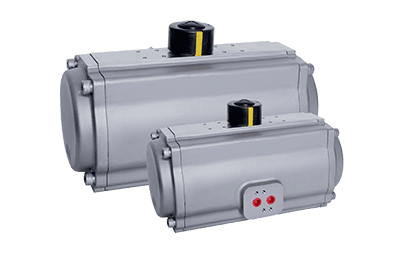

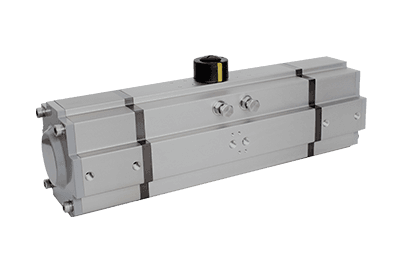

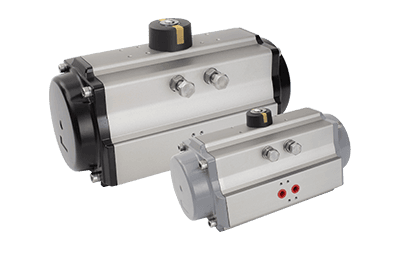

Rack & Pinion Pneumatic Actuators

Vtork rack-and-pinion pneumatic actuators are designed for reliable quarter-turn automation of ball valves, butterfly valves, and plug valves across the full spectrum of industrial process applications. Available in double-acting and spring-return configurations, Vtork rack-and-pinion actuators cover output torques from 10 Nm to over 3,000 Nm, with standard aluminum body construction and optional stainless steel for corrosive environments. All models feature ISO 5211 direct valve mounting, NAMUR solenoid valve interface, and corrosion-resistant coatings for outdoor and offshore service.

Vtork rack-and-pinion actuators are available with optional accessories including solenoid valves, limit switches, positioners, and air filter regulators for complete valve automation packages. Pneumatic supply pressure from 40 to 120 psi, end-of-travel adjustment screws for precise limit setting, and robust cast aluminum bodies with hard-anodized bores make Vtork rack-and-pinion actuators a dependable choice for general industrial service. ATEX-certified models are available for hazardous area applications.

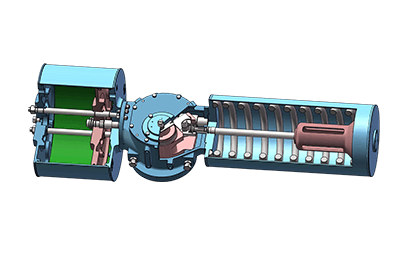

Scotch Yoke Actuators

Vtork scotch yoke pneumatic actuators are engineered for high-torque applications requiring superior breakout torque at the beginning of the stroke — the exact performance characteristic required for tight-shutoff ball valves, triple-offset butterfly valves, and large-bore gate valves in pipeline and heavy industrial service. The scotch yoke mechanism naturally generates maximum torque at the beginning and end of the stroke where valve seating forces are greatest, and lower torque at mid-stroke, providing an ideal torque profile that maximizes actuator efficiency and reduces cylinder size requirements.

Vtork scotch yoke actuators are built for large valve automation on pipeline isolation, emergency shutoff (ESD), and high-cycle process applications. Heavy-duty cast steel construction, oversized bearings, and robust sealing make Vtork scotch yoke actuators suitable for continuous outdoor service in oil and gas gathering systems, gas processing plants, pipeline compressor stations, and LNG terminals. Available in double-acting and spring-return (fail-open or fail-closed) configurations with ATEX certification options.

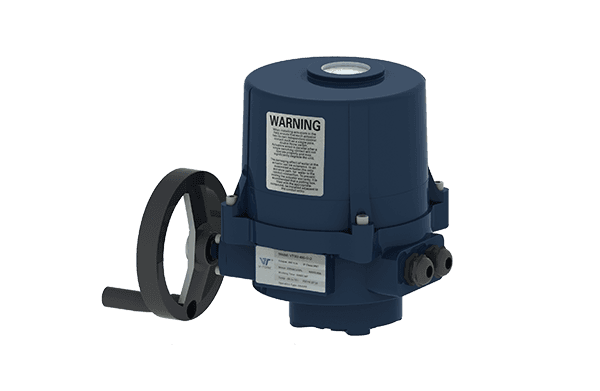

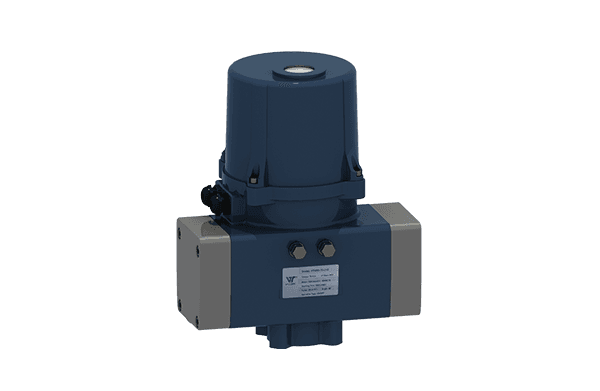

Electric Actuators

Vtork electric actuators provide reliable quarter-turn and multi-turn valve automation where pneumatic supply is unavailable or impractical. Vtork's electric actuator range covers output torques from 30 Nm to 3,000+ Nm for quarter-turn service on ball valves, butterfly valves, and plug valves, and thrust outputs for linear valve applications. Standard NEMA 4 and NEMA 4X weatherproof enclosures are available for outdoor installation, and explosion-proof models meet ATEX and IECEx requirements for hazardous area service.

Vtork electric actuators feature integrated controls with adjustable torque limiting, mechanical and electronic end-of-travel limit switches, local handwheel for emergency manual operation, and optional modulating control with 4–20 mA input and position feedback. Communication options include HART, PROFIBUS, Foundation Fieldbus, and Modbus for integration with modern DCS and SCADA systems. Applications include remote pipeline valve stations, water and wastewater treatment, power plant auxiliary systems, and any process where electric actuation is preferred over pneumatic.

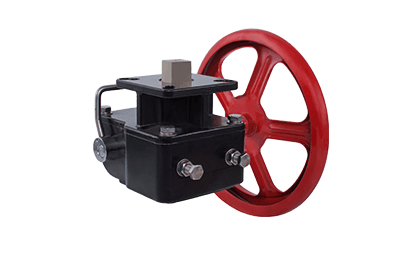

Declutchable Manual Gear Override

Vtork declutchable manual gear overrides allow a pneumatically or electrically actuated valve to be operated by hand when instrument air or power is unavailable. The gear override mounts directly to the actuator and engages with a simple lever operation, providing handwheel-driven manual valve control without removing the actuator from service. The declutch mechanism automatically returns to automatic mode when pneumatic or electric supply is restored, ensuring uninterrupted process control following maintenance or power restoration events.

Vtork manual gear overrides are available in worm gear and spur gear configurations to suit different torque requirements and installation orientations. Heavy-duty construction and weather-resistant coatings make them suitable for permanent outdoor installation on pipeline, refinery, and plant automation applications.

Why Specify Vtork?

• Full product range: rack-and-pinion, scotch yoke, and electric actuators from a single manufacturer
• ISO 5211 direct valve mounting compatible with all major valve brands
• NAMUR interface for direct solenoid valve and positioner mounting
• ATEX/IECEx certified models available for hazardous area service
• Competitive pricing without sacrificing quality or certifications
• Stainless steel and corrosion-resistant options for offshore and aggressive environments
• Electric actuators with HART, Modbus, PROFIBUS communication options
• Backed by ATSCO's in-house machine shop for complete package assembly and testing

ATSCO Sales & Service has over 50 years of experience specifying and supplying valve actuators for the Rocky Mountain process industries. Our team can assist with Vtork actuator sizing, torque calculations, and complete automation package design. Please submit an RFQ or call us at 801-565-7277and we'll be happy to help with your application.
